Industrial Crane

Unleash the potential of our Industrial Crane, trusted by suppliers, dealers, distributors, and traders across All India for exceptional performance in demanding industrial applications. With over 10 years of experience, we proudly present a range of models such as the JK Mini 500 Crane, JK Mini 150 Compact Crane, JK Mini 150R Crane, JK Mini 300R Crane, and JK Mini 150 Crane-each designed for specific requirements to help you find the perfect match for your business. Our magnificent cranes offer outstanding lifting capacity with a customizable approach, ensuring adaptability for every project size. They stand out for their compact yet powerful structure, making them ideal for confined industrial spaces, while their gorgeous build guarantees long-term durability and low maintenance costs. Compared to conventional solutions, our cranes provide superior operational safety and reliability, saving both time and resources for a limited time, making your investment highly cost-effective. Experience unmatched efficiency and simple controls, empowering your workforce to operate seamlessly. Why settle for less when you can choose an industrial crane that is engineered for strength, precision, and outstanding versatility? Partner with us and elevate your material handling operations to a whole new level of excellence.

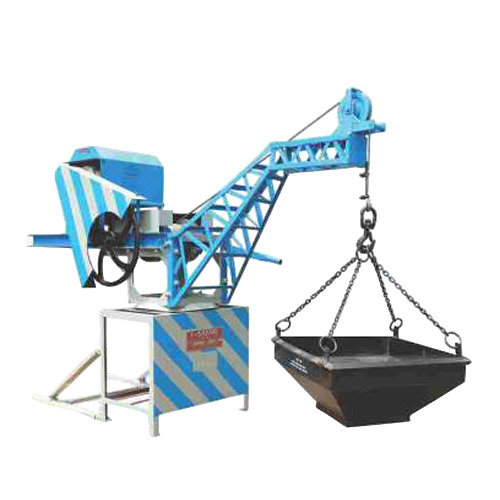

JK Mini 150 Compact Crane

MOQ : 1 Unit

  • Application
  • Other, Construction sites, Building maintenance, Small-scale lifting operations
  • Condition
  • New
  • Control Type
  • Other, Pendant control
  • Crane Total Weight
  • 220 kg
  • Crane Traveling Speed
  • 15 m/min (approx)
  • Crane Type
  • Other Cranes, Mini Compact Crane
  • Emergency Stop
  • Other, Available
  • Feature
  • Other , Compact design, Easy to operate, Portable and lightweight, Low maintenance
  • Lifting Capacity
  • 150 kg
  • Lifting Height
  • 30 m
  • Lifting Time
  • 50 sec for full height
  • Limit Switch
  • Other, Provided
  • Loading Capacity
  • 150 kg
  • Material
  • Mild Steel
  • Max Oil Flow of Hydraulic System
  • 9 L/min
  • Max Pressure of Hydraulic System
  • 180 Bar
  • Recommend Power
  • 1.5 kW
  • Slewing Angle
  • 360 manual rotation
  • Span Length
  • 2 m
  • Trolley Travel Speed
  • 10 m/min
  • Working Presssure
  • 180 Bar

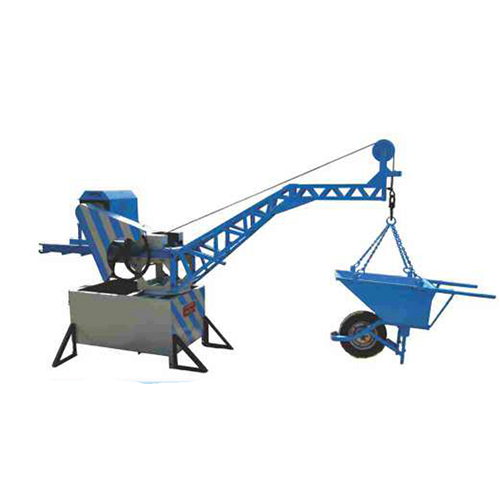

JK Mini 150 Crane

MOQ : 1 Unit

  • Application
  • Other, Construction, Industrial Use, Material Lifting
  • Condition
  • New
  • Control Type
  • Other, Pendant Control
  • Crane Total Weight
  • 220 kg
  • Crane Traveling Speed
  • 8-14 m/min
  • Crane Type
  • Other Cranes, Mini Crane
  • Emergency Stop
  • Yes
  • Feature
  • Other , Compact Design, Easy Installation, Low Maintenance, Light Weight
  • Lifting Capacity
  • 150 kg
  • Lifting Height
  • 30 m
  • Lifting Time
  • 30 sec for full height
  • Limit Switch
  • Yes
  • Loading Capacity
  • 150 kg
  • Material
  • Mild Steel
  • Max Oil Flow of Hydraulic System
  • 8 L/min
  • Max Pressure of Hydraulic System
  • 200 Bar
  • Recommend Power
  • 3 HP
  • Slewing Angle
  • 360
  • Span Length
  • 2.5 m
  • Trolley Travel Speed
  • 8-14 m/min
  • Working Presssure
  • 200 Bar

JK mini 150 Tripod Crane

MOQ : 1 Unit

  • Application
  • Other, Construction, Material Lifting, Warehousing
  • Condition
  • New
  • Control Type
  • Other, Remote / Pendant
  • Crane Total Weight
  • 82 kg
  • Crane Traveling Speed
  • 20 m/min
  • Crane Type
  • Other Cranes, Mini Tripod Crane
  • Emergency Stop
  • Yes
  • Feature
  • Other , Portable and Easy Installation
  • Lifting Capacity
  • 150 kg
  • Lifting Height
  • 22 m
  • Lifting Time
  • 25 sec (for full height)
  • Limit Switch
  • Yes
  • Loading Capacity
  • 150 kg
  • Material
  • Mild Steel
  • Max Oil Flow of Hydraulic System
  • 10 L/min
  • Max Pressure of Hydraulic System
  • 180 Bar
  • Recommend Power
  • 3 HP Motor
  • Slewing Angle
  • 360 Continuous
  • Span Length
  • 2.5 m
  • Trolley Travel Speed
  • 10 m/min
  • Working Presssure
  • 180 Bar

JK Mini 150R Crane

MOQ : 1 Unit

  • Application
  • Other, Construction sites, Industrial maintenance, Warehouses
  • Condition
  • New
  • Control Type
  • Other, Remote / Pendant Control
  • Crane Total Weight
  • 180 Kg
  • Crane Traveling Speed
  • 15 m/min
  • Crane Type
  • Other Cranes, Mini Crane
  • Emergency Stop
  • Yes
  • Feature
  • Other , Remote controlled, Compact design, Easy installation
  • Lifting Capacity
  • 150 Kg
  • Lifting Height
  • 18 m
  • Lifting Time
  • 40 sec (up to full height)
  • Limit Switch
  • Yes
  • Loading Capacity
  • 150 Kg
  • Material
  • Mild Steel
  • Max Oil Flow of Hydraulic System
  • 8 L/min
  • Max Pressure of Hydraulic System
  • 18 MPa
  • Recommend Power
  • 2.2 kW
  • Slewing Angle
  • 360
  • Span Length
  • 3 m
  • Trolley Travel Speed
  • 15 m/min
  • Working Presssure
  • 14 MPa

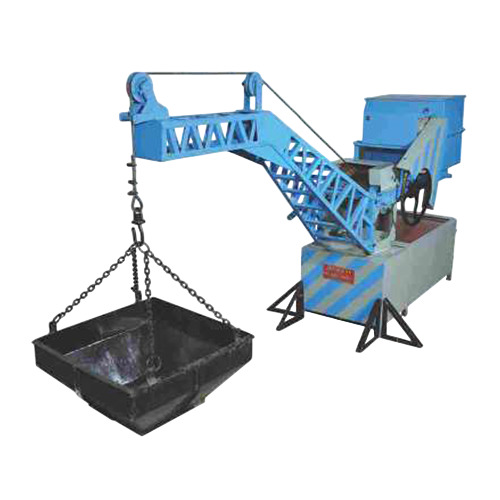

JK Mini 300 Crane

MOQ : 1 Unit

  • Application
  • Other, Material Lifting, Construction Sites, Warehouses
  • Condition
  • New
  • Control Type
  • Other, Pendant Control
  • Crane Total Weight
  • 180 kg
  • Crane Type
  • Other Cranes, Mini Crane
  • Emergency Stop
  • Yes
  • Feature
  • Other , Easy installation, Low maintenance, Automatic stop and start
  • Lifting Capacity
  • 300 kg
  • Lifting Height
  • 30 m
  • Limit Switch
  • Yes
  • Loading Capacity
  • 300 kg
  • Material
  • Mild Steel
  • Recommend Power
  • 2.5 HP
  • Slewing Angle
  • 360 Continuous

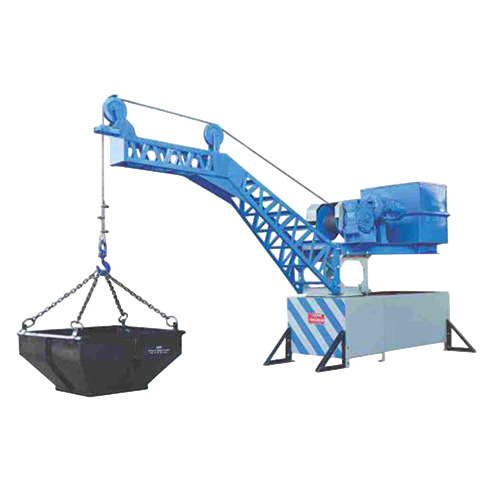

JK Mini 300R Crane

MOQ : 1 Unit

  • Application
  • Other, Construction, Warehousing, Material Handling
  • Condition
  • New
  • Control Type
  • Other, Pendant Control
  • Crane Total Weight
  • 350 Kg
  • Crane Traveling Speed
  • 20 m/min
  • Crane Type
  • Other Cranes, Mini Crane
  • Emergency Stop
  • Yes
  • Feature
  • Other , Easy to operate, Compact design, Portable
  • Lifting Capacity
  • 300 Kg
  • Lifting Height
  • 30 meters
  • Lifting Time
  • 40 seconds for 30 meters
  • Limit Switch
  • Yes
  • Loading Capacity
  • 300 Kg
  • Material
  • Mild Steel
  • Max Oil Flow of Hydraulic System
  • 18 L/min
  • Max Pressure of Hydraulic System
  • 230 bar
  • Recommend Power
  • 3 HP
  • Slewing Angle
  • 360 continuous rotation
  • Span Length
  • 2.5 meters
  • Trolley Travel Speed
  • 15 m/min
  • Working Presssure
  • 230 bar

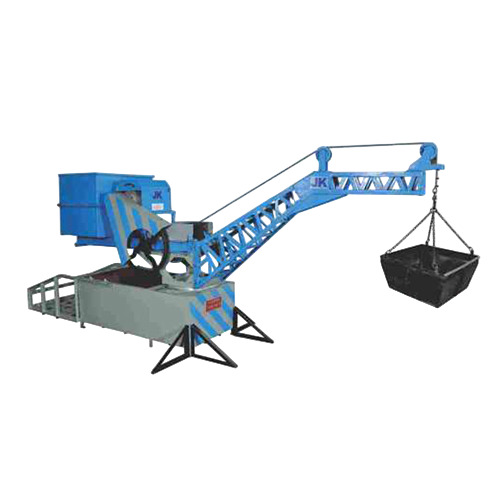

JK Mini 500 Crane

MOQ : 1 Unit

  • Application
  • Other, Construction, Warehouses, Workshops
  • Condition
  • New
  • Control Type
  • Other, Pendant Control
  • Crane Total Weight
  • 150 kg
  • Crane Traveling Speed
  • 8 m/min
  • Crane Type
  • Other Cranes, Mini Crane
  • Emergency Stop
  • Yes
  • Feature
  • Other , Mini Crane, Compact Design, Easy Operation
  • Lifting Capacity
  • 500 kg
  • Lifting Height
  • 25 m
  • Lifting Time
  • 24 sec (full load to full height)
  • Limit Switch
  • Yes
  • Loading Capacity
  • 500 kg
  • Material
  • Steel
  • Max Oil Flow of Hydraulic System
  • 10 L/min
  • Max Pressure of Hydraulic System
  • 20 MPa
  • Recommend Power
  • 3 kW
  • Slewing Angle
  • 360
  • Span Length
  • 2.5 m
  • Trolley Travel Speed
  • 5 m/min
  • Working Presssure
  • 20 MPa

JK Mini 500WR Crane

MOQ : 1 Unit

  • Application
  • Other, Construction, Material Handling, Maintenance
  • Condition
  • New
  • Control Type
  • Other, Remote Control / Manual
  • Crane Total Weight
  • 260 kg
  • Crane Traveling Speed
  • 20 m/min
  • Crane Type
  • Other Cranes, Hydraulic Mini Crane
  • Emergency Stop
  • Yes
  • Feature
  • Other , Mini, compact design, remote control operation
  • Lifting Capacity
  • 500 kg
  • Lifting Height
  • 30 m
  • Lifting Time
  • 30 seconds (full load)
  • Limit Switch
  • Yes
  • Loading Capacity
  • 500 kg
  • Material
  • Alloy steel
  • Max Oil Flow of Hydraulic System
  • 10 L/min
  • Max Pressure of Hydraulic System
  • 16 MPa
  • Recommend Power
  • 4 kW
  • Slewing Angle
  • 360 continuous
  • Span Length
  • 2.7 m
  • Trolley Travel Speed
  • 20 m/min
  • Working Presssure
  • 16 MPa
